Zxtech 4K CCTV System - 3 x IP PoE Cameras Motorised Lens Face Detection Outdoor Sony Starvis Enhanced Night Vision | RX3D4Z

SKU: RX3D4Z50

Resoluton: 5MP
Storage: No HDD
Extension: 9CH NVR (4 PoE) + No Camera Deep Bases
Sale price£315.31
  • UK next business day delivery
  • UK VAT invoices included
  • 30 days hassle free returns
  • 12 month warranty
  • In stock, ready to ship

30X Digital Zoom

5X Optical Auto Zoom

The CCTV system is equipped with 5X auto zoom camera with a varifocal lens from 2.7mm to 13.5mm. The 5X optical zoom and extra digital zoom allows you to clearly see license plates up to 30 meters away.

System Features

Complete 3 camera kit with Ultra HD 4K & astonishing long distance 60M colour night vision option, Remotely control 5x motorised zoom reaching 30M for clear reg plate, Smart human detection, Industrial leading Sony Starvis chip, Integrated 4-Port PoE NVR, Massive 8TB storage option for long lasting recording, Ultra wide 130° angle, Easy & free smartphone access, Metallic & outdoor weatherproof, and many more cutting edge features...

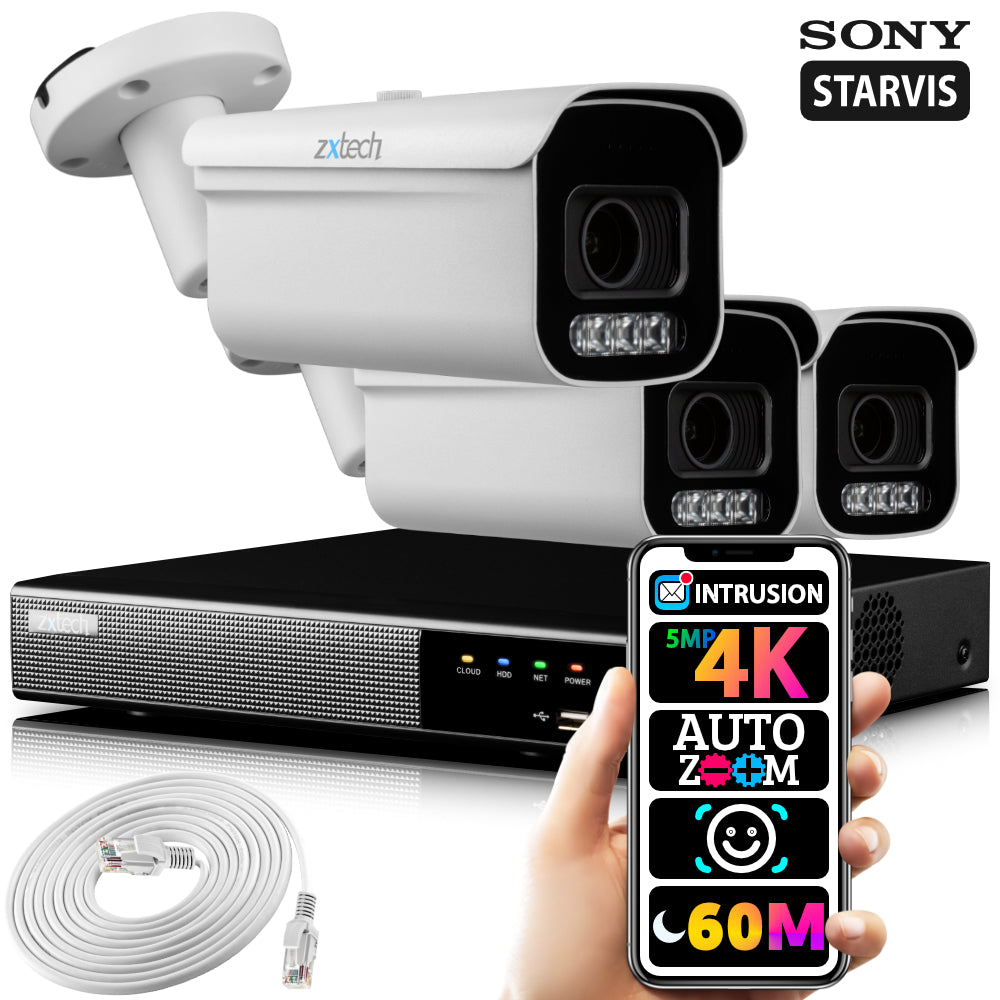

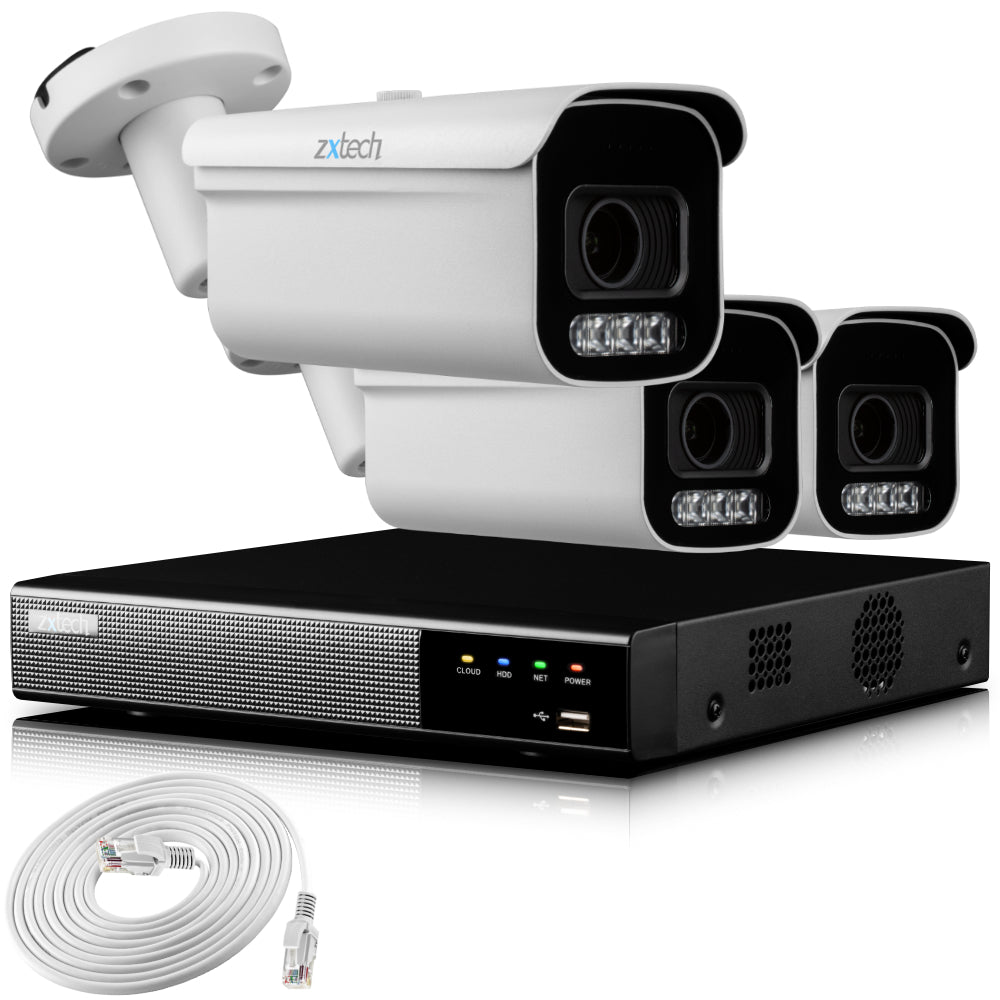

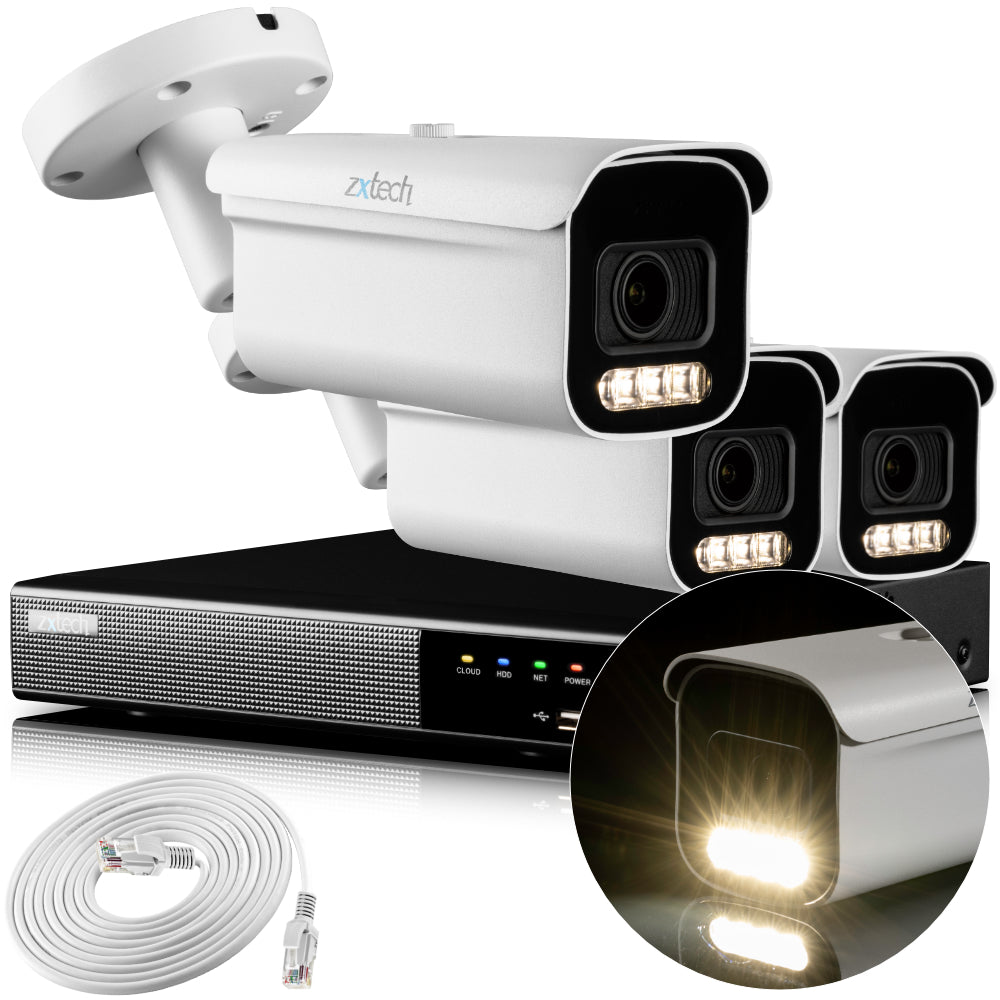

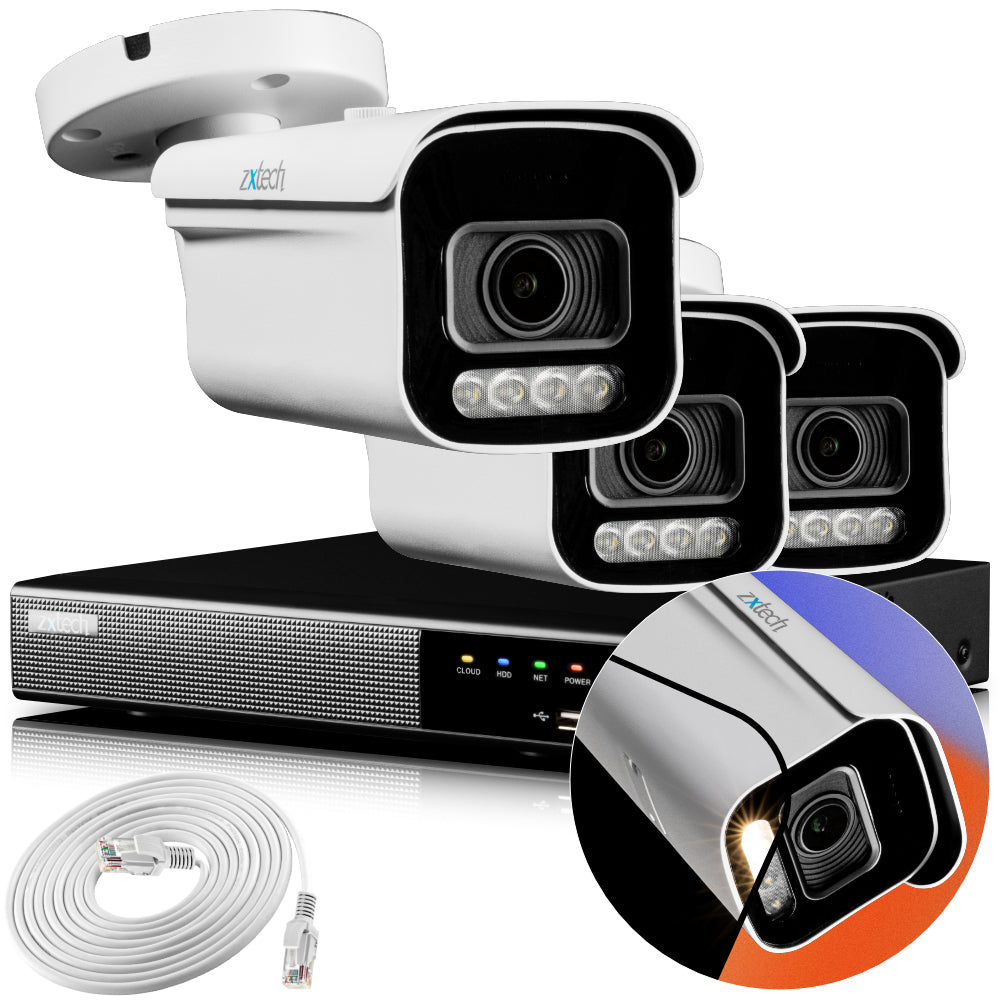

What's in the Box

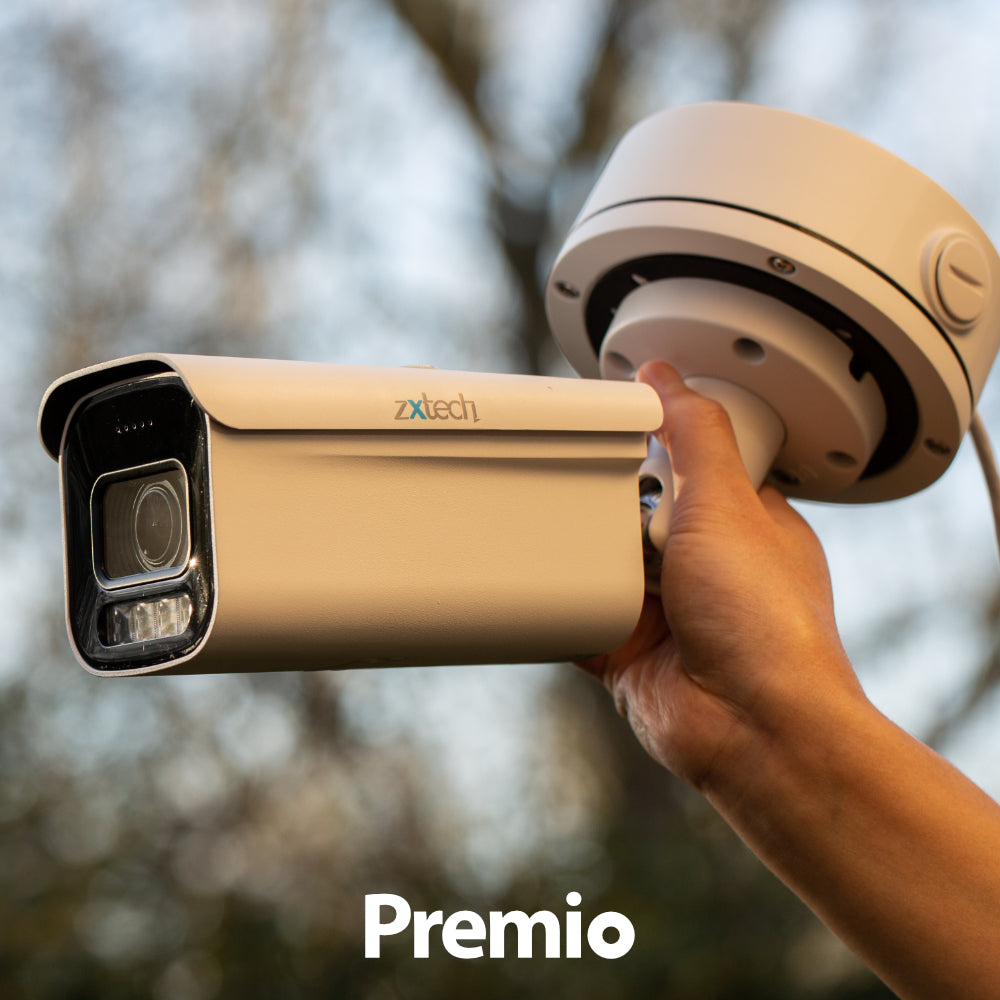

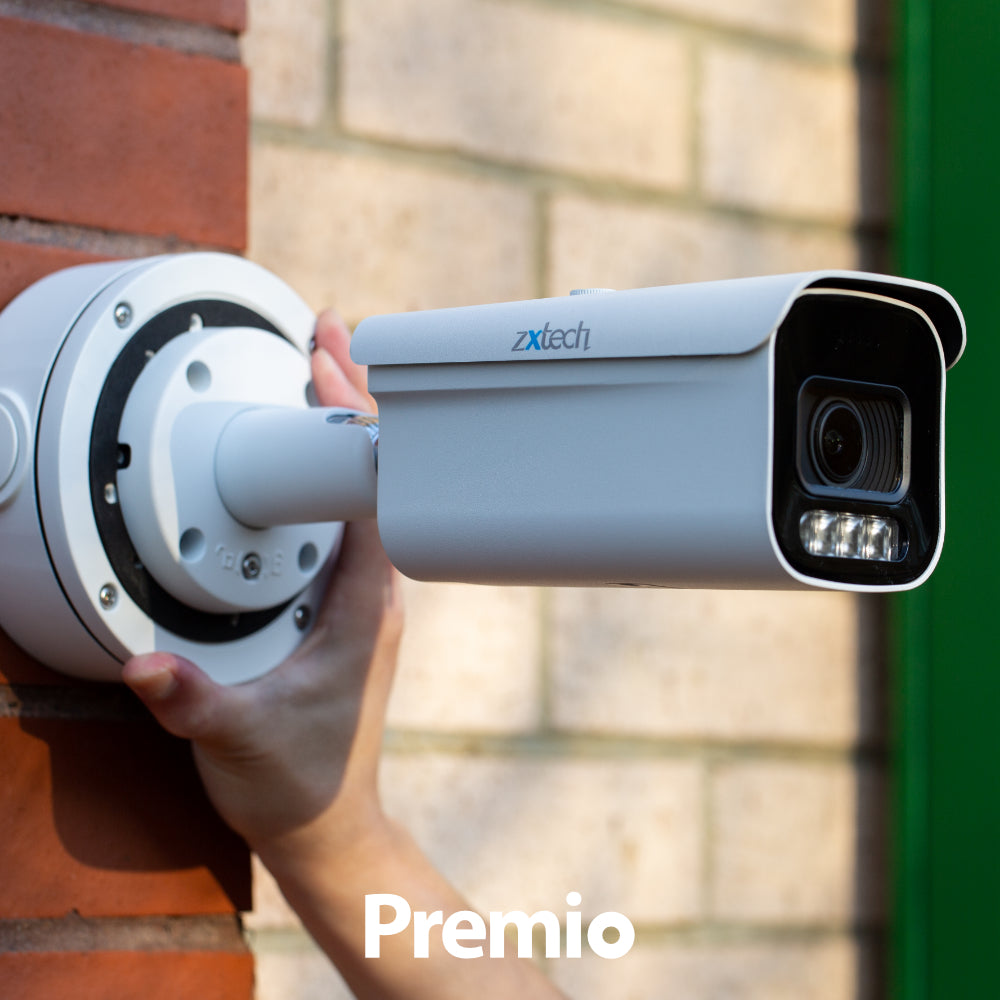

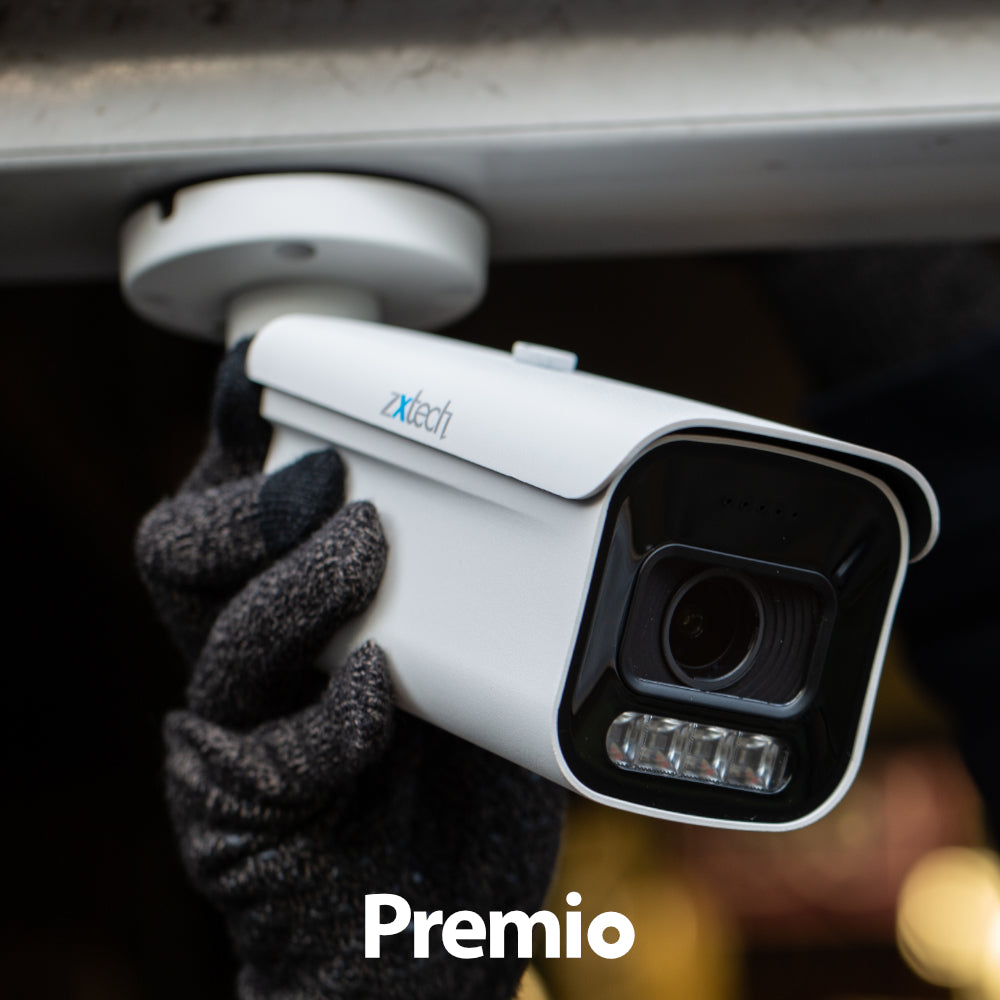

3x White 4K AI PoE Bullet Varifocal Cameras*

Alternative option including affordable 5MP, and intense LED colour night vision features compared below.

1x 4-Port PoE 4K 9CH NVR Recorder
2x 10M, 1x 20M, 1x 2M Network Cat5e Cable
Up to 8TB Surveillance Grade Hard Drive
Optional Extension Bracket
4K/UHD/8MP/5MP/4MP

New model cameras with amazing 8 Megapixel resolution (3840*2160) (optional 5 Megapixel) for razor-sharp image and brilliant colour

60M Night Vision

Another level of visualisation with superb night vision up to 60M. If you have some extra lighting, you will be able to achieve colour night vision. Alternatively, buy the "Intense LED" option for the built-in 4 x ultra bright light supplements for full colour CCTV footage 24/7.

Face and Body Detection

Ultra Smart AI Face Detection enables Intrusion, Line Crossing, Loiter and People Gather Detection

Sony Chip

Sony Starvis Back-illuminated CMOS sensor giving you best experience for true 4K (optional 5MP)

Built-in PoE Switch

Complete PoE system, built-in PoE switch CCTV NVR and PoE CCTV Camera make installation easier then ever

Built-in Memory and Extendable Audio

Premio CCTV Camera with built-in 4GB Storage with 512GB Extendable SD Card Slot for footage backup preventing losing the images, this camera has a separate lead so you will be able to connect a microphone in case you want to record sound

2.7-13.5 mm Auto Zoom & Focus

Comes inbuilt motorised 2.7-13.5 mm lens, specially designed for bullet cameras allowing you from narrow to extra wide-angle, optically zoom in or out using your mobile phone or PC, then the motor automatically will refocus without climbing up a ladder

H265+

Featuring H265+ video compression the kit will save you up to 75% hard disk storage

Smart Phone Remote Access

Ability to remote access with free mobile app from anywhere in the world, all with just click of a button to ensure a comprehensive viewing that covers all your needs

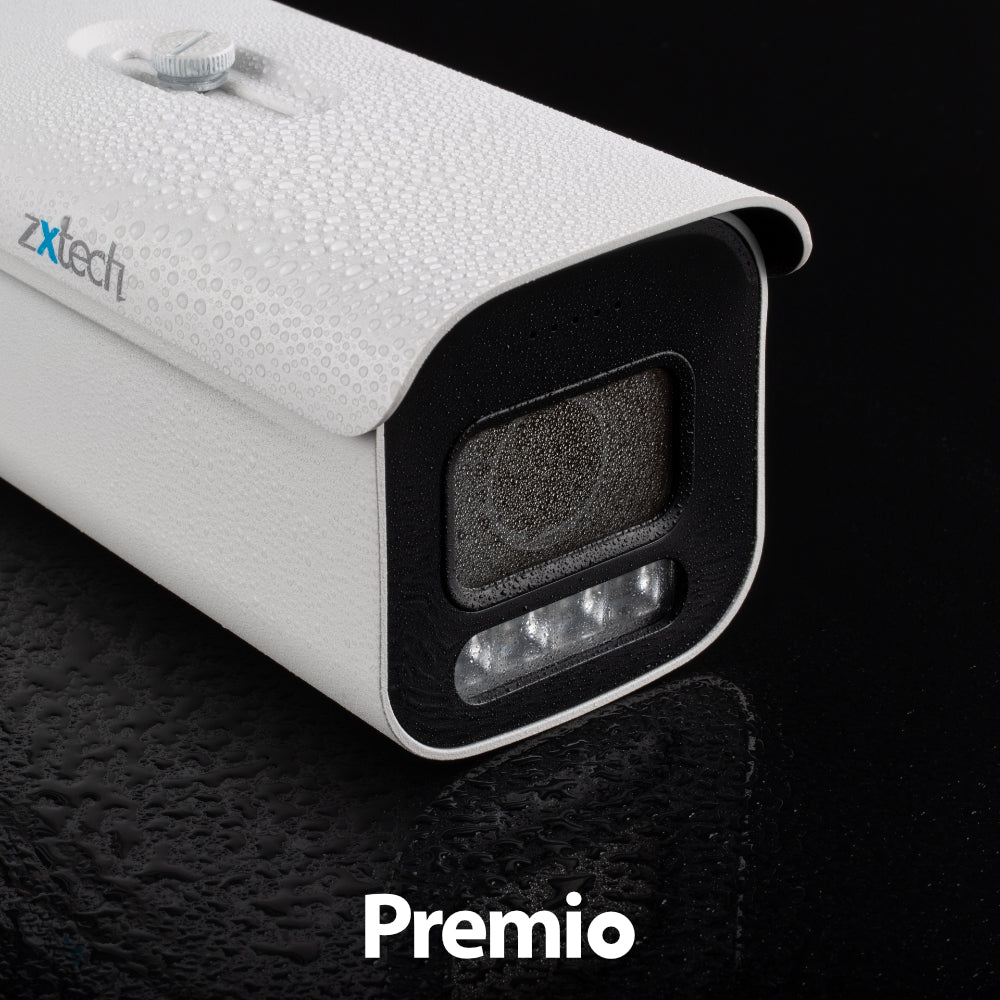

Waterproof & Vandal Proof

Premio CCTV Camera has a sturdy construction built for the outdoor or indoors rated to IP67 with a strong anti-vandal body case

HDR & Image Enhancement

Featuring IR Cut, WDR, BLC, ROI, Defog making the system perfect for day and night. HDR Sensor Enables Dynamic Range over Mind-blowing 120 dB

Smart Motion Alert

The system supports motion detection and mobile notification alert, activated push images once the motion is triggered

Quick Mobile Setup

P2P QR Scan for anyway, anytime Remote CCTV Access

Camera Options Compared

Available Option
Premio 5MP
Premio 4K
Premio 4K IntenseLED
Resolution

5 Megapixel (2592 x 1944)

8 Megapixel (3840 x 2160)

8 Megapixel (3840 x 2160)

Viewing Angle

Ultra Wide 130°-34° 5X Auto Zoom

Ultra Wide 130°-34° 5X Auto Zoom

Ultra Wide 130°-34° 5X Auto Zoom

Night Vision

60M Infrared

60M Infrared

60M IntenseLED Colour

Suitability

Indoor & Outdoor

Indoor & Outdoor

Preferably Outdoor Due to It's Eye Blinding LED Light

4X

Shaper than 1080p

4K 8 Megapixel Option*

130°

Ultra Wide View

130°-34° 5X Auto Zoom

60M

Night Vision Range

Infrared or IntenseLED

4GB

Onboard Memory

Buit-in Per Camera

512GB

SD Card Slot

Safety Net Per Camera

8TB

Hard Drive Option

1x HDD Bay

Free App

Stream Live, Receive Real-time Alerts, Snap & Share, and Playback Anytime, Any Where, and Control Zoom

5X Optical Auto Zoom, with Extra Digital Zoom

The CCTV system is equipped with 5X auto zoom camera with a varifocal lens from 2.7mm to 13.5mm. The 5X optical zoom and extra digital zoom allows you to clearly see license plates up to 30 meters away.

Learn About the Whole Range

Watch the Intro Video

This video quickly goes through the entire range, introducing you to all the cameras and features included in the system.

Impressive 5MP & Unparalleled 8MP(4K)

4K delivers 4X the resolution of 1080p, whereas 5MP provides 2.5X the resolution of 1080p. Both represent significant advancements over traditional high definition.

Camera that captures the finest details.

4K CCTV Camera with Sony Starvis Chip, 120dB HDR and Colour Night Vision Option

Sony Starvis 8MP Sensor, renowned for its exceptional low-light sensitivity and performance. ensures crisp 8MP/4K (optionally 5MP) imagery, offering superior HDR capabilities all while maintaining energy efficiency. Ideal for both home and professional security needs.

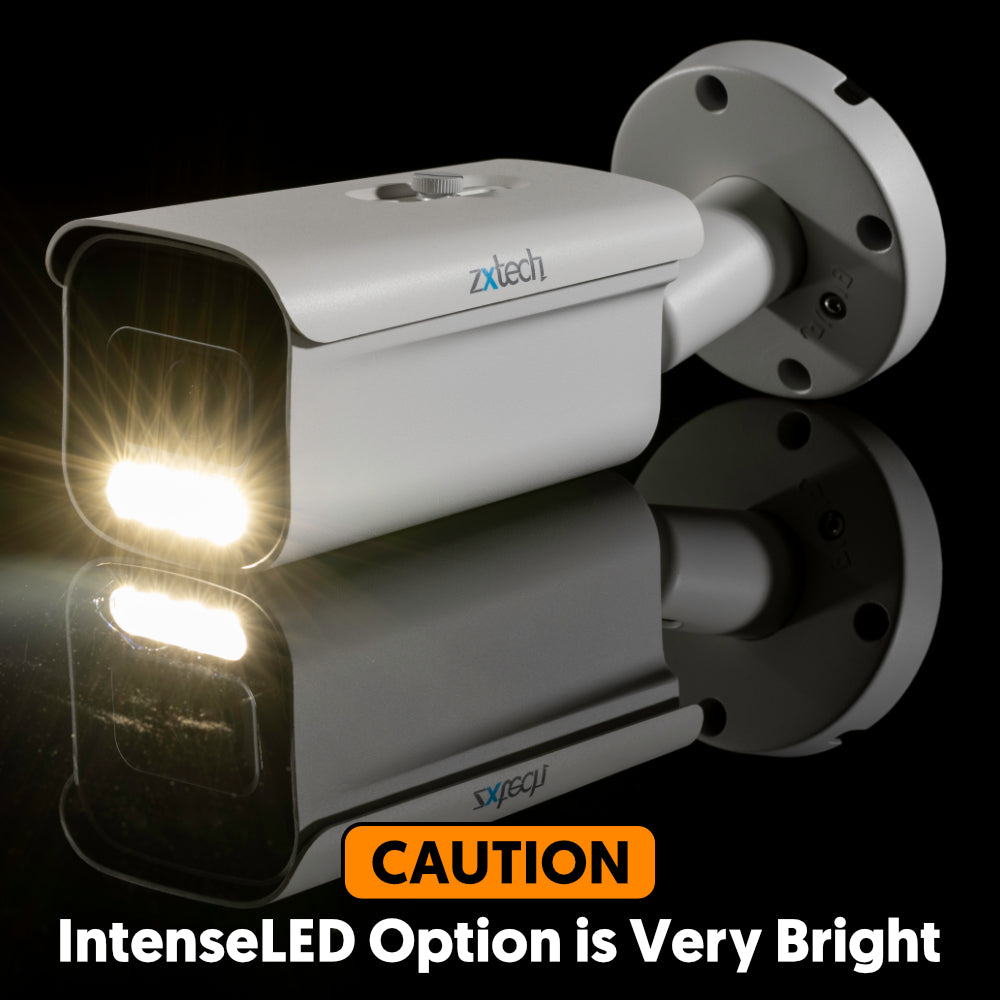

Optional Intense LED Colour Night Vision Technology

Sharp Infrared, Colourful IntenseLED

Zxtech's new IntenseLED technology delivers 24/7 full-colour CCTV footage in 4K Ultra HD, powered by a larger aperture, intense LED lighting, and the premium Sony Starvis Sensor. As an alternative to the already reliable infrared night vision. Both can enhance police investigations and court evidence. While the bright built-in LEDs act as a deterrent, they might be too intense for quiet residential areas. As the name suggests, IntenseLED option may not suitable for indoor use due to its intensity.

Infrared

Intense LED

Drag

Be Ready for the Future

4K: A Quantum Leap from 1080p

Elevate your CCTV quality beyond the standard 2MP aka 1080p or HD. Our 5MP Super HD offers 2.5X clearer visuals, optimising car plate recognition. Yet, the true game-changer is upgrading to 4K resolution. Experience ultra-crisp, sharp images, powered by the Sony Starvis 8MP Sensor, boasting over 8 million pixels. Enhanced by a 4000K White LED, this 4K CCTV delivers unparalleled low-light performance at an efficient power consumption. Choose 4K for the pinnacle of home security visuals.

2 Megapixel

4K

Drag

Sorcery of Modern CCTV Technology

120dB HDR: Ultimate Contrast

For the best security footage, it's vital to avoid areas that are overly bright or too dark, as key details can go unnoticed. Zxtech's advanced HDR video processing ensures that images captured at different exposures merge seamlessly, offering consistent contrast and highlighting every essential detail in your footage.

No HDR

With HDR

Drag

CCTV Kits with the Best PoE Cameras - Atlas Range

4K CCTV Camera System with 5x Auto Zoom, Ultra Wide Angle, 4GB Onboard Memory, 512GB SD Card Slot, Waterproof, Anti-Vandal, Full Metal, F1.0 Large Aperture

IP67

Waterproof, Suitable for Outdoor

The Atlas Bullet-shaped camera, unlike traditional Bullet cameras that are typically designed for indoor use only, is now fully equipped for outdoor installation. It comes with a water-sealed metal casing to protect your house under any weather condition.

All Around Metal

Anti-Vandal Design.

Every PoE camera in the system features a robust metal casing designed to enhance durability against vandalism. The metal body also boosts weather resistance and extends the lifespan of the cameras. The metal casing of each PoE camera in the system is specifically designed to provide exceptional durability against vandalism. This robust construction ensures that the cameras can withstand even the most determined attempts at tampering or damage.

Home, Office, Shop or Car Park

PoE CCTV for All Situations, All Weather.

The PoE cameras are designed with British weather in mind. Whether you operate an AirBNB in Inverness, Scotland, manage a car park in Swansea, Wales, or live in a terraced house in London, this complete system can withstand all types of rainy and snowy conditions with its IP67 rating.

Watch Live Stream Now

Ultra Wide Angle

The 2.7-13.5mm lens, combined with the 1/2.8" industry-leading Sony Starvis sensor, captures an ultra-wide 128° angle. With the 4K lens, both detail and coverage are exceptional.

4 Channel PoE NVR: Install Your Camera with Just One Cable

Say goodbye to messy cables and complicated installations. Our Power over Ethernet system allows you to transmit both video and power through a single network cable. By eliminating the need for separate power adaptors and splitters, you can enjoy a hassle-free installation process that is both time-saving and cost-effective.

See All PoE Cameras

Camera Onboard Memory

4GB Built-in & 512GB Optional SD Card

Every PoE camera boasts a 4GB built-in memory and an SD Card slot supporting up to 512GB. This provides reliable backup storage for snapshots and ensures uninterrupted security. Activate in-camera recording to securely back up your footage offline using an SD card.

See All SD Card Cameras

Size Matters

Prepare for installation by planning ahead. Use the given dimensions and specs to determine the right site. A thorough prep ensures a flawless fit and peak performance. Remember: measure twice, install once.

Less Drilling, Max Protection

Optional Bracket for Neat Installation

This system offers the option to add an extra bracket, eliminating the need to drill large holes through the wall to hide cables. The weatherproof bracket or spacer ensures protection for your connections, enhancing the longevity of the system.

Alert with Regional Intrusion and Line Crossing.

4K CCTV System with Smart Humanoid Detection

Introducing Zxtech's advanced CCTV kits, equipped with cutting-edge AI face detection capabilities. Beyond the standard features like Motion Detection, Mobile Alerts, Masking, and Scheduling, our cameras redefine security with their power AI functions. Ensure unparalleled safety by receiving alerts or activating recordings when someone enters or crosses a predefined zone. With Zxtech, experience next-generation CCTV that proactively aids in crime prevention. Elevate your security with the future of surveillance technology.

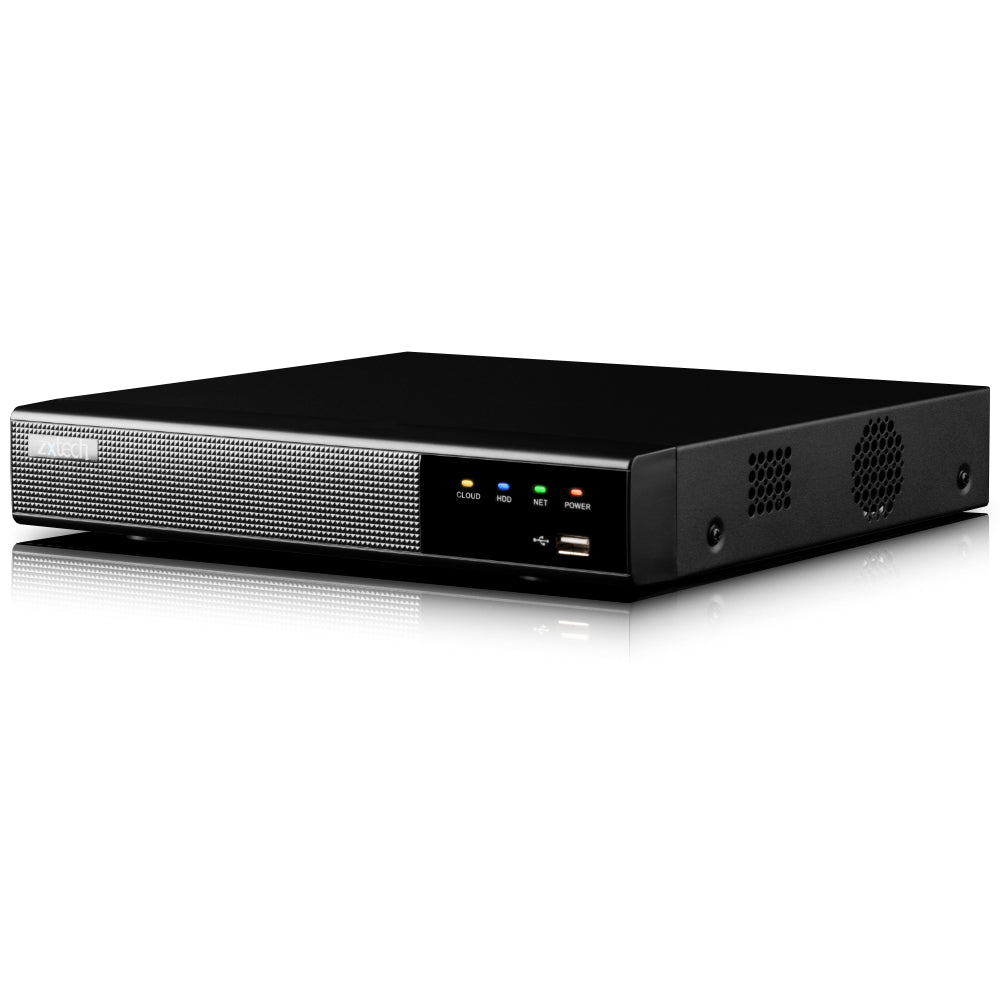

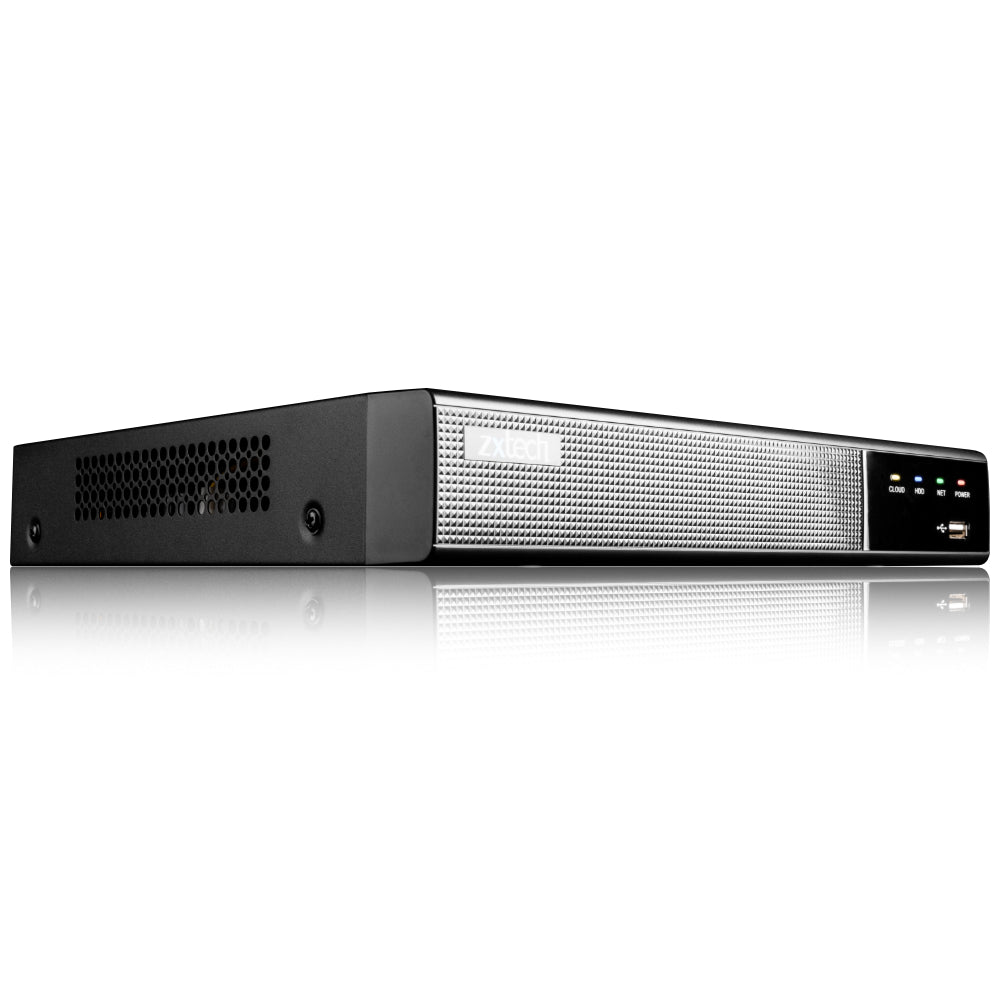

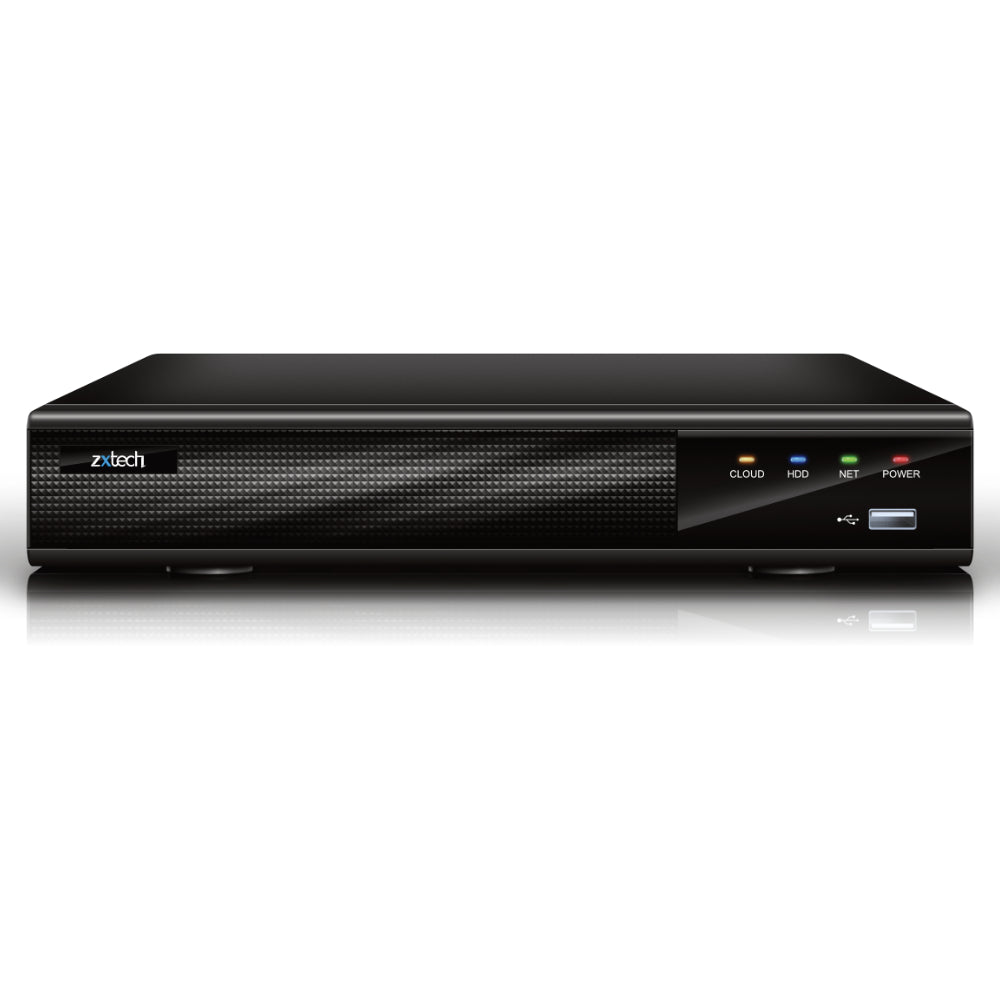

The Best System Comes with The Best 4K CCTV Recorder

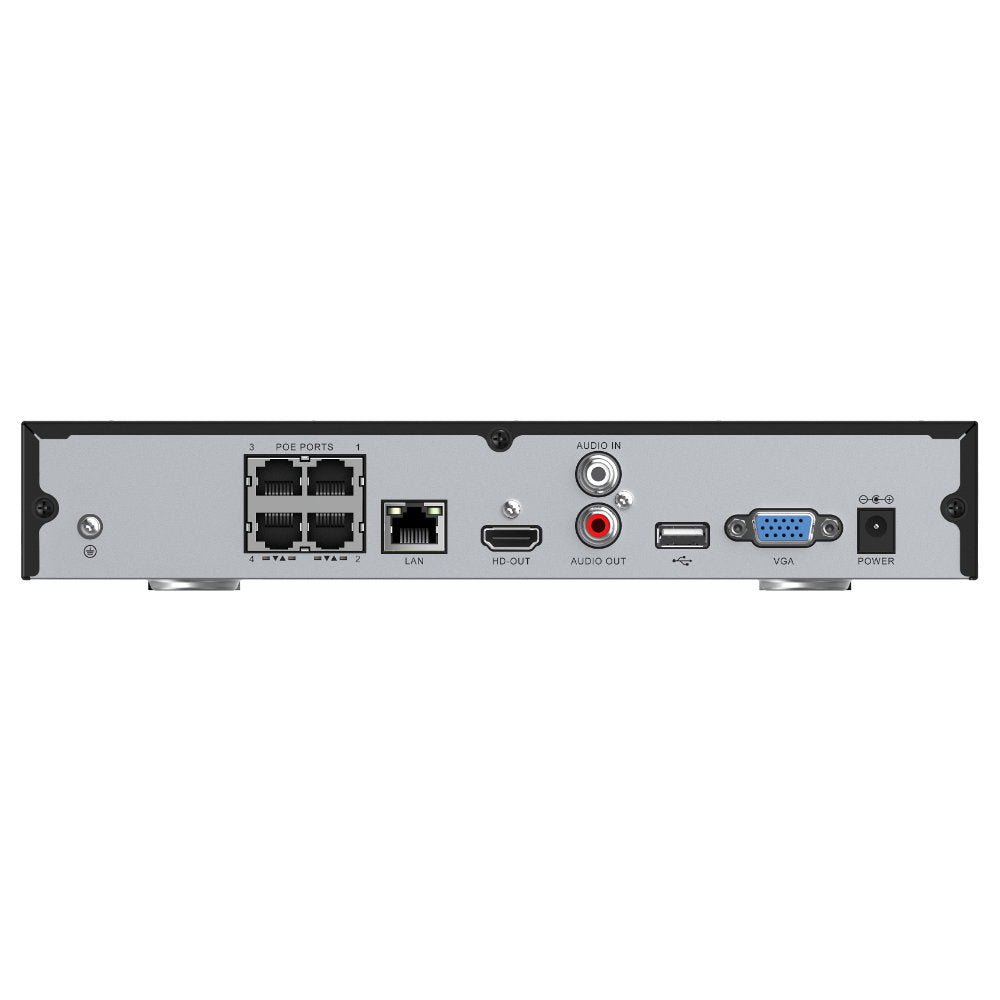

Built-in 4 Port PoE recorder,HDMI & VGA, Loop recording, Expand up to 9x IP Cameras. Supports max 9x 5MP cameras or 8x 4K/8MP Cameras. Up to 8TB HDD, Audio in & out, Alarm ports, 2x USB ports.

With Loop Recording

8TB Storage Option for "Marathon" Recording

The advanced PoE CCTV system provides an impressive storage capacity which comes with 1x HDD bay with total storage 8TB. Combined with H265+ compression technology, your recordings will use far less storage space, allowing the hard drive to accommodate up to 4 times more footage compared to the older H264 format. Additionally, the automatic loop recording ensures the oldest clips are overwritten, so you always retain the most critical evidence.

Explore HDD

Maximize Performance, Minimize Bandwidth

H.265+: Revolution in Video Coding

Welcome to the era of H.265+ High-Efficiency Video Coding. Experience a significant reduction in hard drive storage and transmission costs. With this groundbreaking system, video storage space is slashed by 40 to 50%, presenting undeniable cost savings for both homeowners and businesses. With H.265+, your recording duration expands to up to 4 times longer than h.264 on an identical hard drive. Elevate your efficiency without compromising quality.

Mac, PC, Smart Phone, TV

Access on Any Device, Any Time

PC, Mac

Download the latest version of the iVMS software for your PC or Mac. This allows you to remotely monitor and review footage from your CCTV system, ensuring you stay connected wherever you are, anytime you need.

2 Screen TV Setup

The NVR included with the system boasts both HDMI and VGA ports on the back, enabling simultaneous connection to two external monitors or TVs. For instance, with a sufficiently long cable, you can have one display in the kitchen and another in the living room.

Smart Phone

In today's world, smartphones are indispensable, and so should your CCTV system be. Download the latest BitVision app to monitor, view, playback, and share your CCTV footage anytime, anywhere.

Technical Details

Image Sensor 1/2.8"" SONY Starvis Back-illuminated CMOS sensor
Resolution 5MP (optional 8MP)
Effective Pixels 2616 (H) x 1964 (V) (optional 3864(H)*2192(V))
Compression H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
Electronic Shutter Time Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
Minimun Illumination 0.01Lux
S/N Ratio ≥52dB
Scanning System Progressive
Video Output Network
Reset Button Support
Focus Length 2.7-13.5mm
Focus Control Auto
Lens Type Auto
Pixels 8MP (optional 5MP)
Infrared LED 42µ x 4PCS
Optiional Intense LED 3015U × 4 Warm light LED up to 60M
Infrared Distance 60M
IR Status Auto Control
IR Power On Auto Control
Ethernet RJ-45 (10/100Base-T)
Protocol TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
ONVIF Support ONVIF 2.4(Profile S/T)
P2P YES, Support QR Code
PoE Internal, Support IEEE 802.3af
Video Delay 0.3S (Within the Lan)
Main Stream 1 2592*1944@30fp (optional 2048*1536@30fps)
Intelligent Analysis Intrusion Detetion, Line Cross Detetion, Loiter Detetion, People Gather Detecion
Recognition Face Detection and Recognition
Number of faces per frame: 32
Capture rate: >99.5%
Repeat capture rate: <15%
False capture rate: <0.5%
Number of supported faces: 30,000
Minimum detection of face pixels: 25*25
Maximum detection of face pixels: 300*300
Day/Night Color/ B&W (Select Intense LED for 24/7 Colour)
Image Config Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance,
FLK(Flicker Control), Video Tampering
Defog Mode, ROI, BLC Support
WDR HDR:120dB
Motion Detection Support
Privacy Masking 3 Rectangular Zone
Audio Support
Alarm 1 Channel Input/Output
SD Card Slot External, Support Max 512GB,With 4G Storage
Audio Extendable Audio Input/Output
Housing IP67
Dimension 93(W) x 91(H) x 263(D)mm
